A high-traffic commercial slide gate operator rated for gates up to 50 ft. and 1,500 lbs., with battery backup, myQ smart control, and Security+ 2.0 for reliable, secure access.
24VDC High-Traffic Commercial Slide Gate Operator with Battery Backup
Security and Access Control
Security+ 2.0®: Generates a new encrypted code with every remote activation, virtually eliminating the risk of signal interference or code theft.
Wireless Dual-Gate Communication: Synchronizes dual gate opening and closing without the need for costly conduit trenching or unsightly driveway scars.
Posilock®: Automatically closes the gate when pushed from the closed limit, preventing unauthorized manual entry.
Manual Disconnect: Allows the gate to be opened manually when the operator is unlocked, providing access during maintenance or emergencies.
Smart Connectivity
myQ Technology: Provides full remote access and monitoring through an internet-connected smartphone, letting operators and property managers stay informed at all times.
LED Diagnostic Display: Simplifies installation and troubleshooting by displaying error codes directly on the unit.
Programmable Auxiliary Relays: Supports up to 3 main board and 3 expansion board safety inputs, making it easy to add accessories and customize the setup.
Safety
Gate Safety Sensors: Stops the gate from closing on obstructions, protecting people and vehicles entering or leaving the property.
Inherent Reversing Sensor: Detects obstructions during travel and reverses the gate when closing, or stops and reverses when opening.
UL 325 Listed: Tested and certified to the most stringent UL 325 industry safety standards for gate operators.
Performance and Durability
Continuous-Duty Motor: 24VDC motor built for high-cycle, continuous operation with smooth performance across a wide range of temperatures.
Temperature Range: Operates from -4°F to 140°F without a heater, and down to -40°F with the optional heater kit (HTR).
HomeLink® Compatible: Works with HomeLink version 4.0 and higher for added convenience in compatible vehicles.

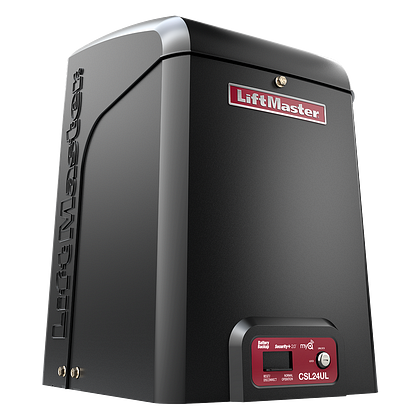

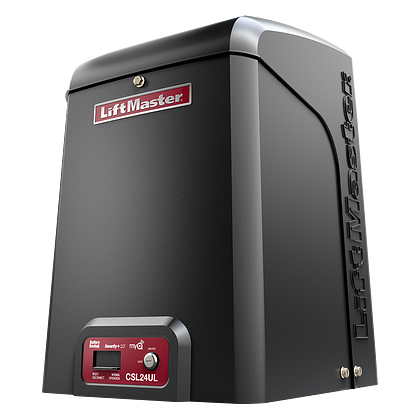

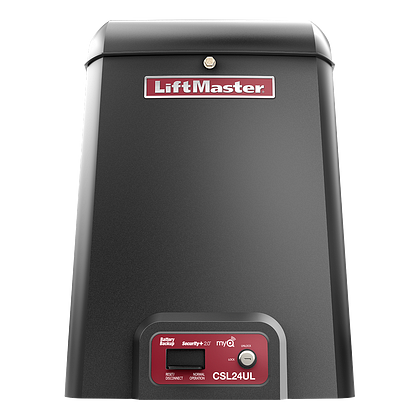

The LiftMaster CSL24ULWK is a dependable, full-featured commercial slide gate operator designed for properties that need consistent, secure, and high-cycle gate performance.

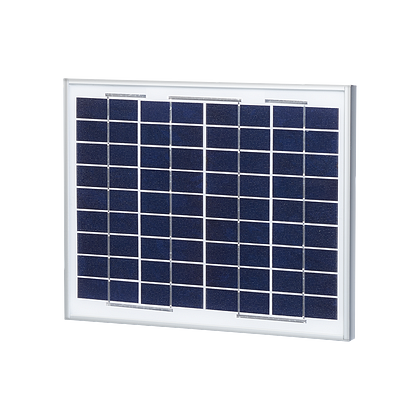

With smart connectivity, advanced safety features, and solar-ready capability, it delivers the reliability that commercial and high-demand residential properties require.
